Sports complex "Street Workout mini" PTP 523-03-Х

The land is intended for general development and improvement of physical condition with the help of different types of exercises.

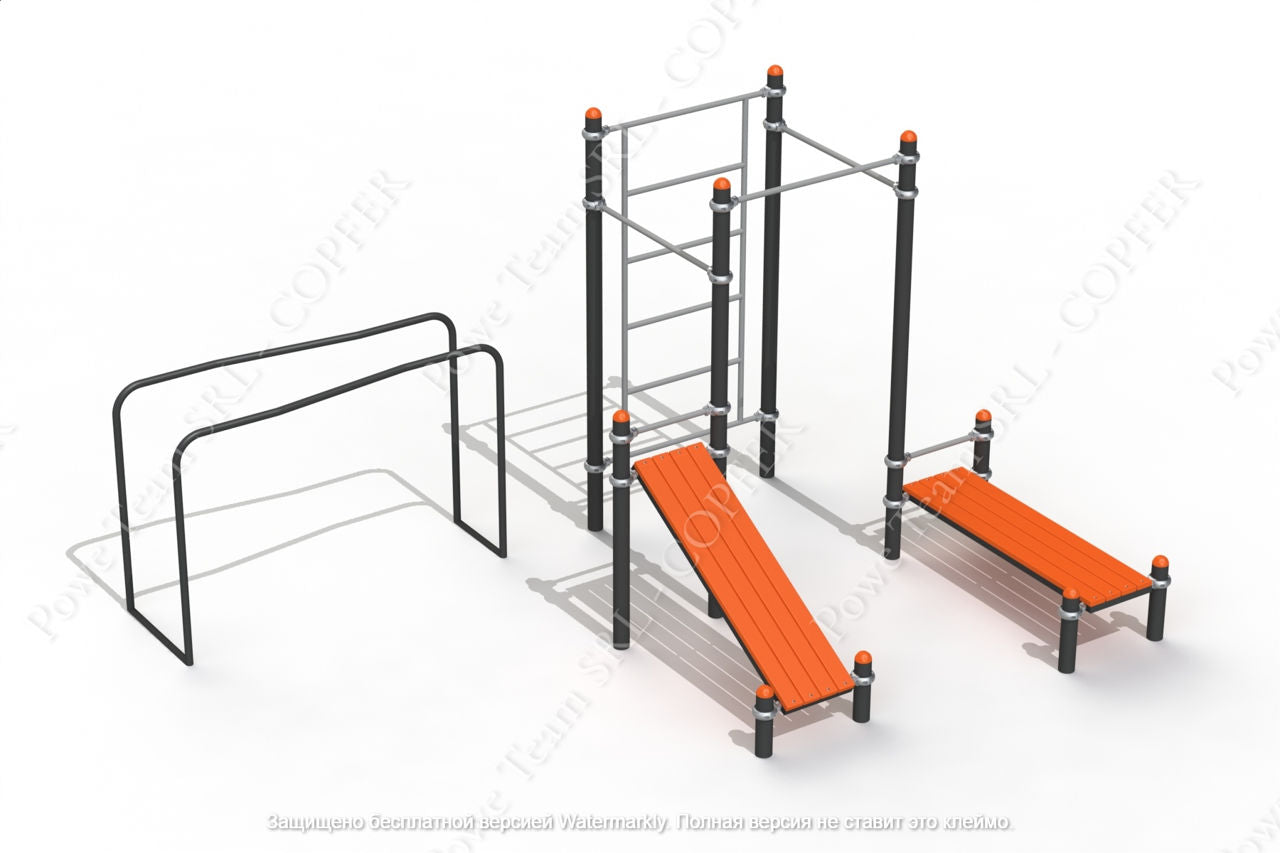

Components : gymnastic trellis, inclined bench, horizontal bench, parallel bars, set of bars of different levels.

The construction will consist of support pillars made of steel pipes with a diameter of at least 89mm and a minimum wall thickness of 3mm, on clamps without welded joints, horizontal bars of different levels made of steel pipes with a diameter of at least 33mm. The horizontal bars of the parallels will be made of pipe with a minimum diameter of 42mm. The surface of the inclined bench for the development of the abdomen is to be made of HDPE (high-density polyethylene) without toxic components with a multilayer structure of various colors, with a thickness of no less than 15mm. To avoid the penetration of water from precipitation, the pillars must be covered with plastic covers.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

Materials : steel, plastic, HDPE.

Technical characteristics : General dimensions (orientative) of the land, no less than: Length: 4518 mm, Width: 3385 mm, Height: 2545 mm.

In addition to the space occupied by the equipment, according to the regulations in force, a minimum impact zone of 1.5 m-2.5 m will be provided.

The foundation of the complex will have minimum dimensions of LxWxH=400x400x700mm, and the foundation of the individual elements will have minimum dimensions of LxWxH=400x400x500mm.

Requirements for installation : To ensure safe and reliable operation, all supporting elements are to be deepened into the soil (earth) not less than 0.70m (0.50m – solitary elements) to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.

Download DWG drawing
