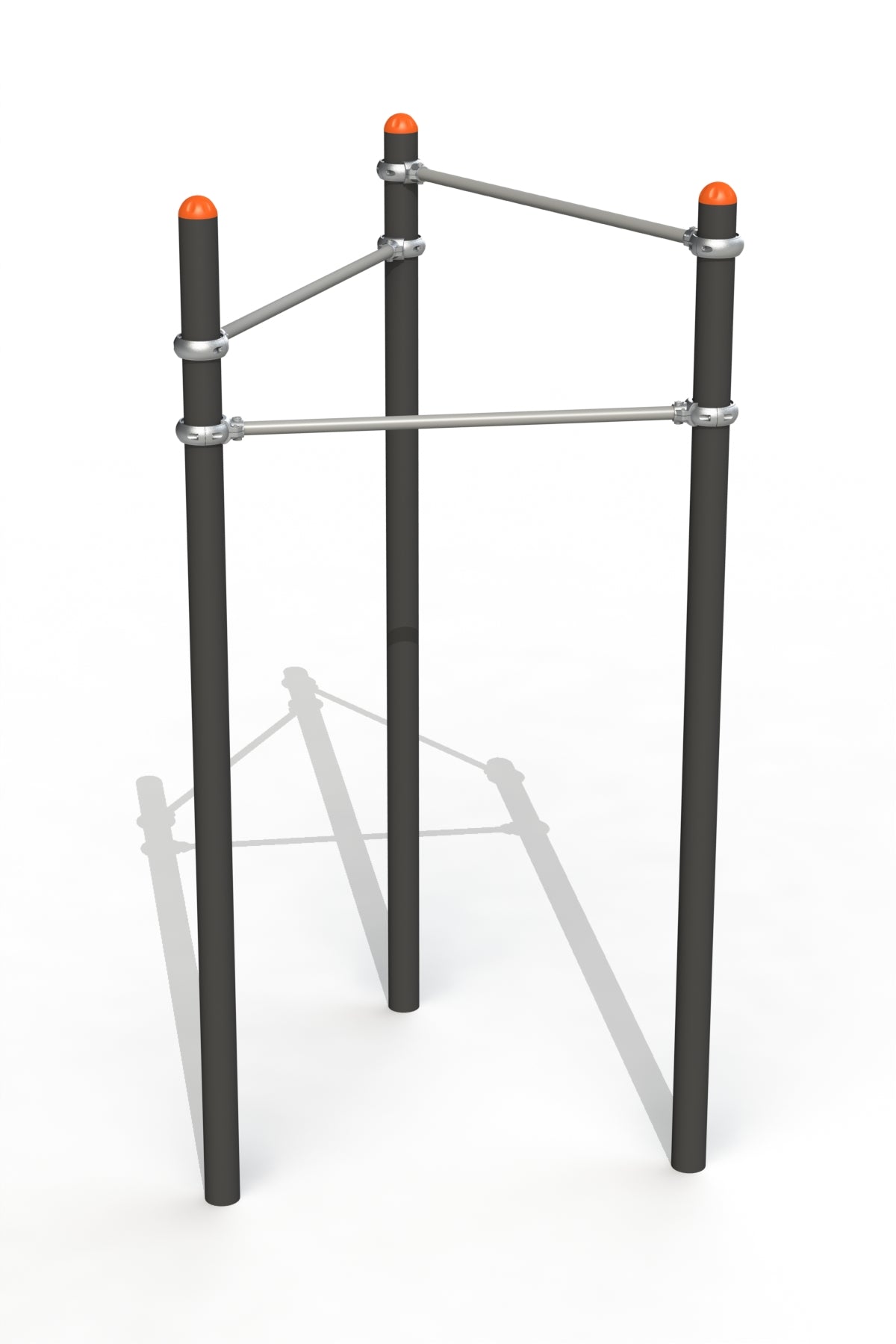

Triple horizontal bars PTP 523-XA

Triple horizontal bars they are suitable for pull-ups, abs and most body weight strength exercises.

The construction will consist of support pillars made of steel pipes with a diameter of at least 89mm and a minimum wall thickness of 3mm, on clamps without welded joints, horizontal bars need to be made of steel pipes with a diameter of at least 33mm.

in order to avoid the penetration of water from precipitation, the pillars must be covered with plastic covers.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

Materials: steel, plastic.

Technical characteristics: General dimensions of the land, not less than: Length: 1328 mm, Width: 1167 mm, Height: 2545 mm.

In addition to the space occupied by the equipment, according to the regulations in force, a minimum impact zone of 1.5 m-2.5 m will be provided.

The foundation of the complex will have minimum dimensions of LxWxH=400x400x700mm, and the foundation of the individual elements will have minimum dimensions of LxWxH=400x400x500mm.

Requirements for installation: To ensure safe and reliable operation, all supporting elements are to be deepened into the soil (ground) not less than 0.70m (0.50m – solitary elements) to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.
