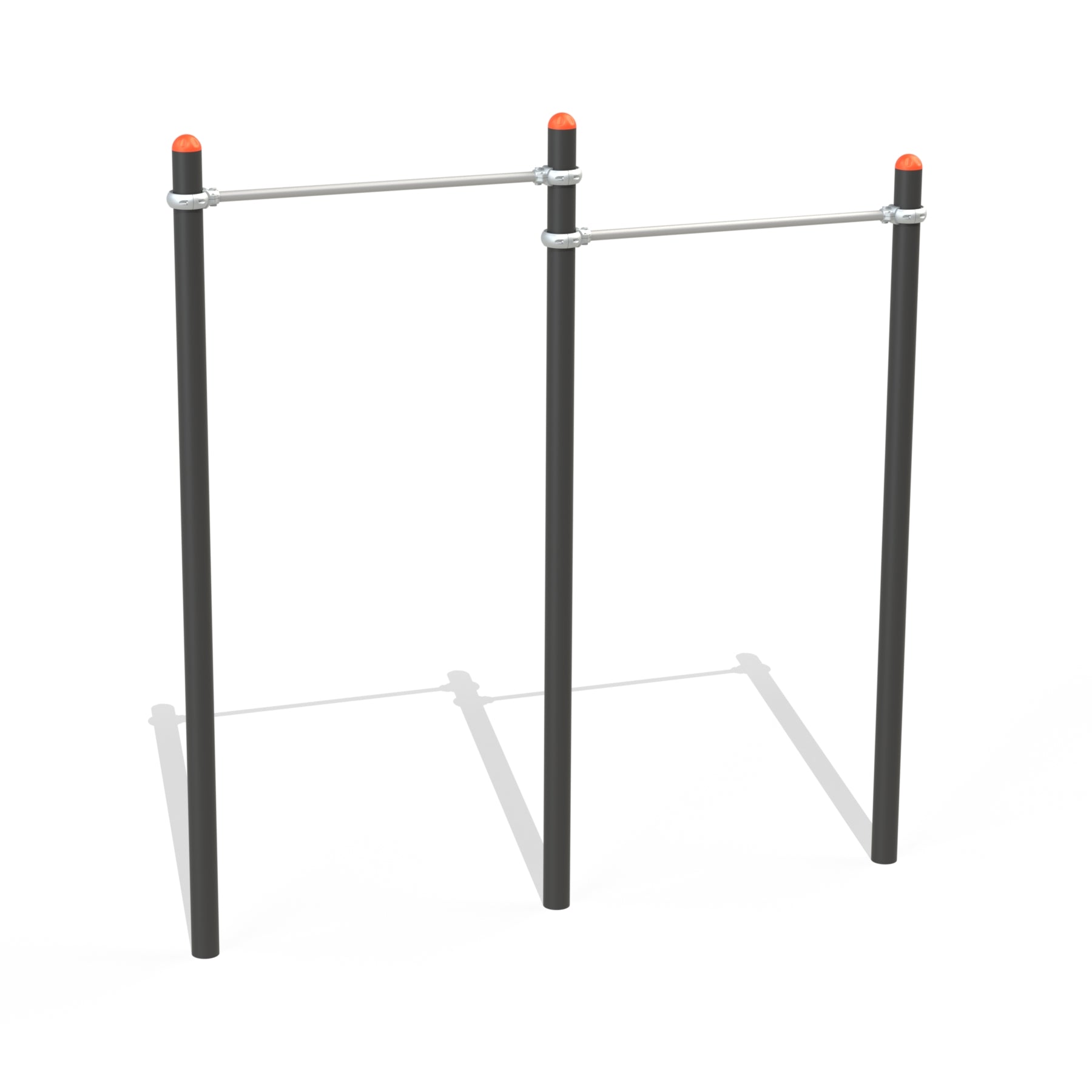

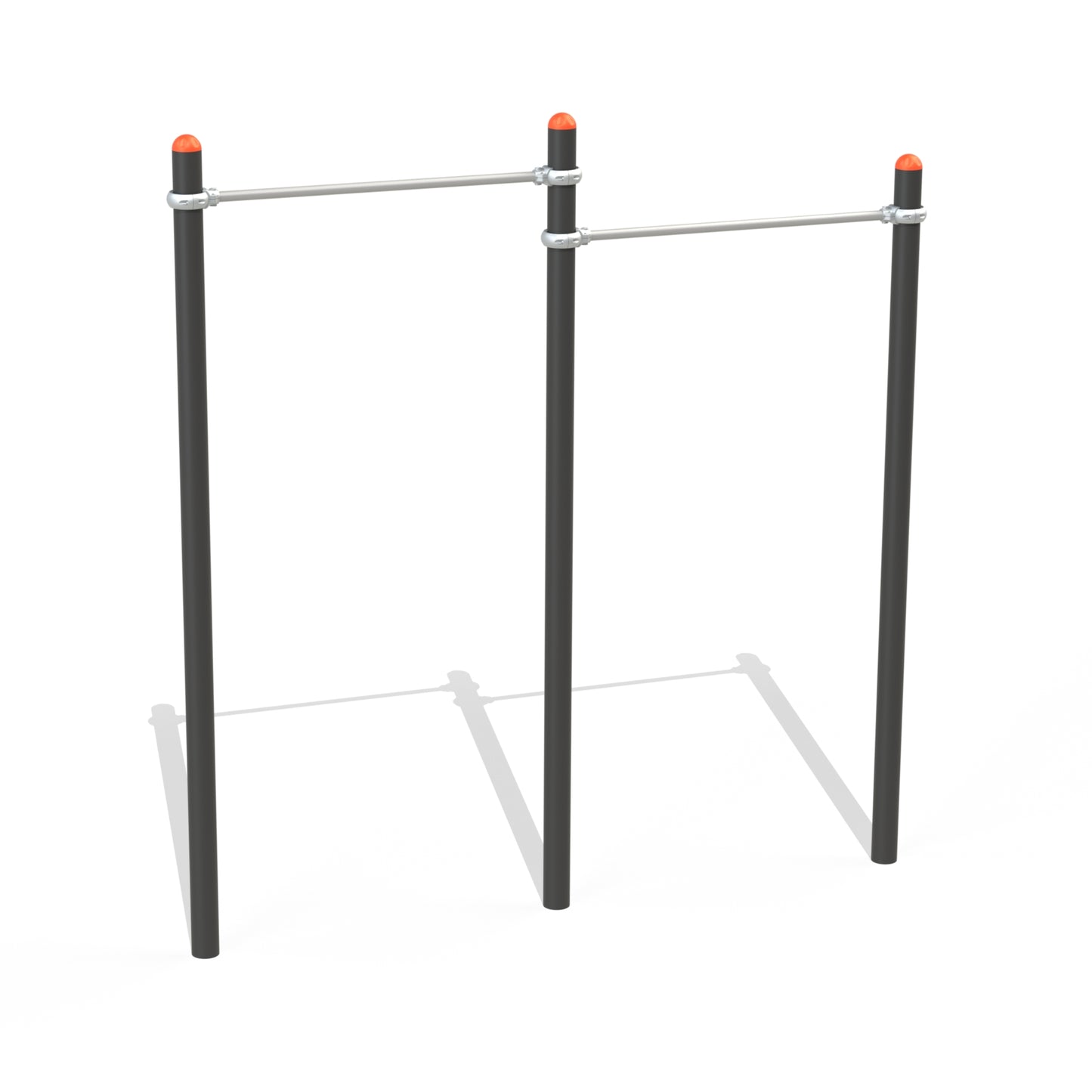

PTP 523-X.A2 2-level bars

Horizontal bars are suitable for pull-ups, abs and most bodyweight strength exercises.

The construction will consist of support pillars made of steel pipes with a minimum diameter of 89mm and a minimum wall thickness of 3mm, on clamps without welded knots. The horizontal bars must be made of steel pipes with a minimum diameter of 33mm.

To prevent the penetration of rainwater, the pillars must be covered with plastic caps.

The metal elements must be sandblasted and electrostatically painted, in two layers with a minimum thickness of 100 microns to provide resistance to the outdoor environment.

Materials: steel, plastic.

Technical specifications: Overall dimensions of the area, no less than: Length: 2500 mm, Width: 120 mm, Height: 2600 mm. Level 1: 2450 mm, Level 2: 2200 mm.

In addition to the space occupied by the equipment, according to current regulations, a minimum impact zone of 1.5m-2.5m will be provided.

The foundation of the complex will have minimum dimensions of Lxlxh=400x400x700mm, and the foundation of solitary elements will have minimum dimensions of Lxlxh=400x400x500mm.

Installation requirements: To ensure safe and reliable operation, all support elements must be embedded in the ground (earth) no less than 0.70m (0.50m for solitary elements) to increase rigidity, followed by the concreting process (BC 300 concrete). The installation of the elements must exclude the possibility of their disassembly without the use of specialized tools.
