Sports complex PTP 523-10-X

Complex designed to develop hand coordination and endurance.

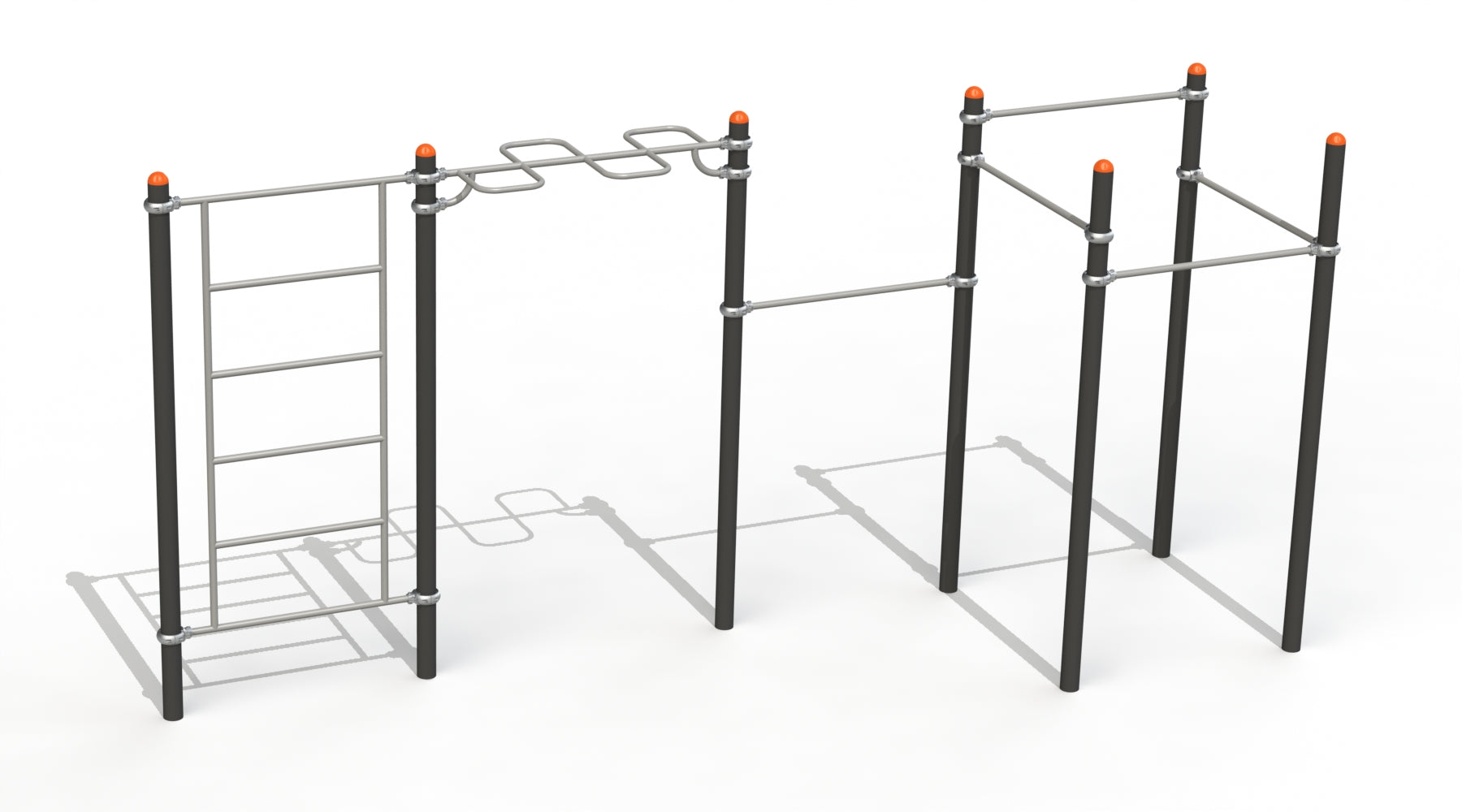

Complex consisting of: set of horizontal bars of different levels, Swedish ladder, serpentine bars.

The structure will consist of 7 support pillars made of steel pipes with a diameter of at least 89 mm and a minimum thickness of 3 mm. The bars for the vertical gymnastic trellis, serpentine bars, horizontal bars of different levels will be made of pipes with a diameter of at least 33 mm and a minimum thickness of 2.8 mm.

To avoid the penetration of rainwater, the pillars must be covered with plastic caps.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with
minimum thickness of 100 microns to make them resistant to the external environment.

Materials: steel, HDPE, plastic.

Technical characteristics: Overall dimensions of the land, not less than: Length: 5200 mm, Width: 1550 mm, Height: 2530 mm.
In addition to the space occupied by the equipment, according to the regulations in force, a minimum impact area of ​​1.5 m-2.5 m will be provided.

The foundation of the complex will have minimum dimensions of Lxlxh=400x400x700mm.

Installation requirements: To ensure safe and reliable operation, all support elements are to be sunk into the ground (earth) no less than 0.70m to increase rigidity, followed by concreting (BC 300 concrete). The assembly of the elements must exclude the possibility of their disassembly without the use of special purpose tools.
