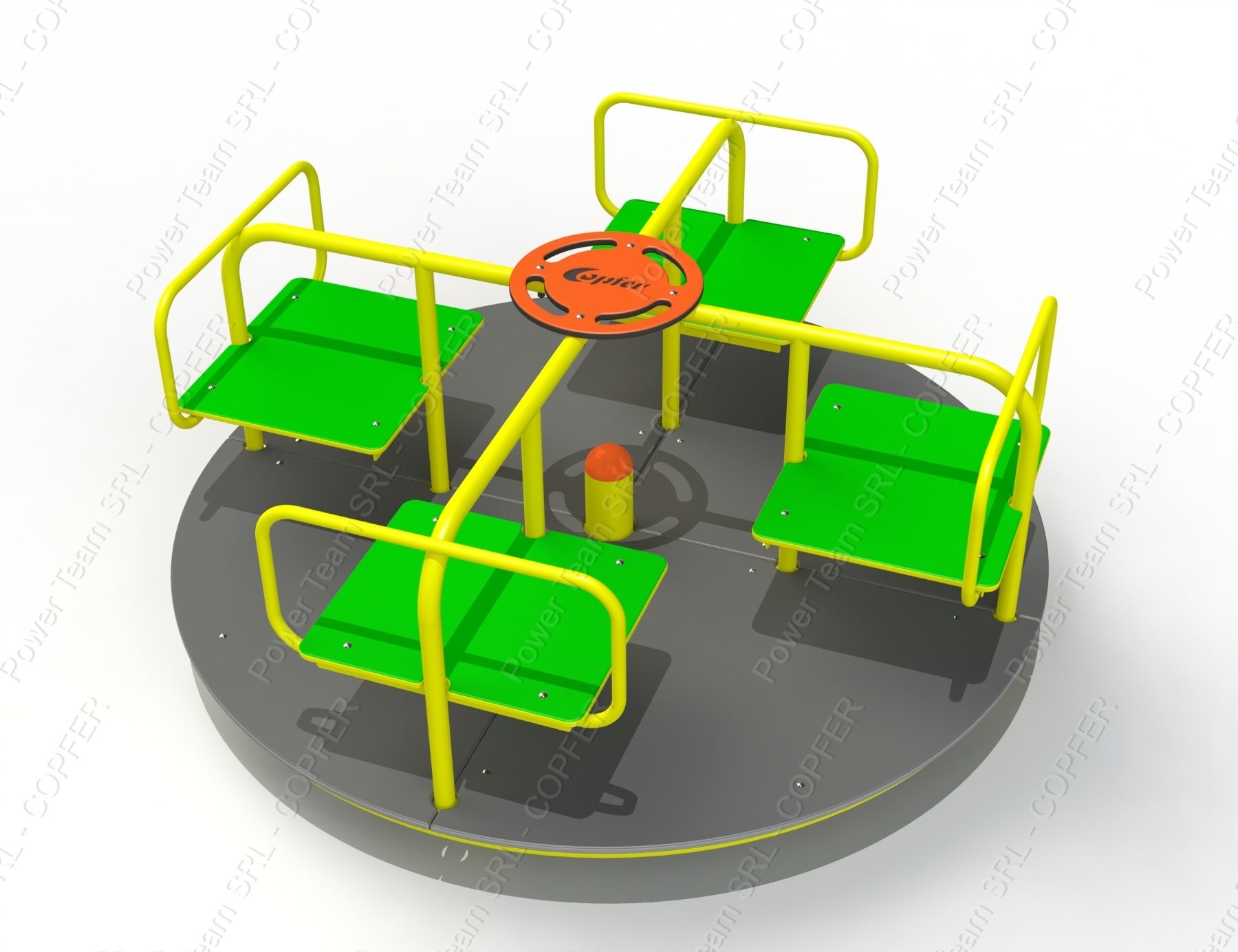

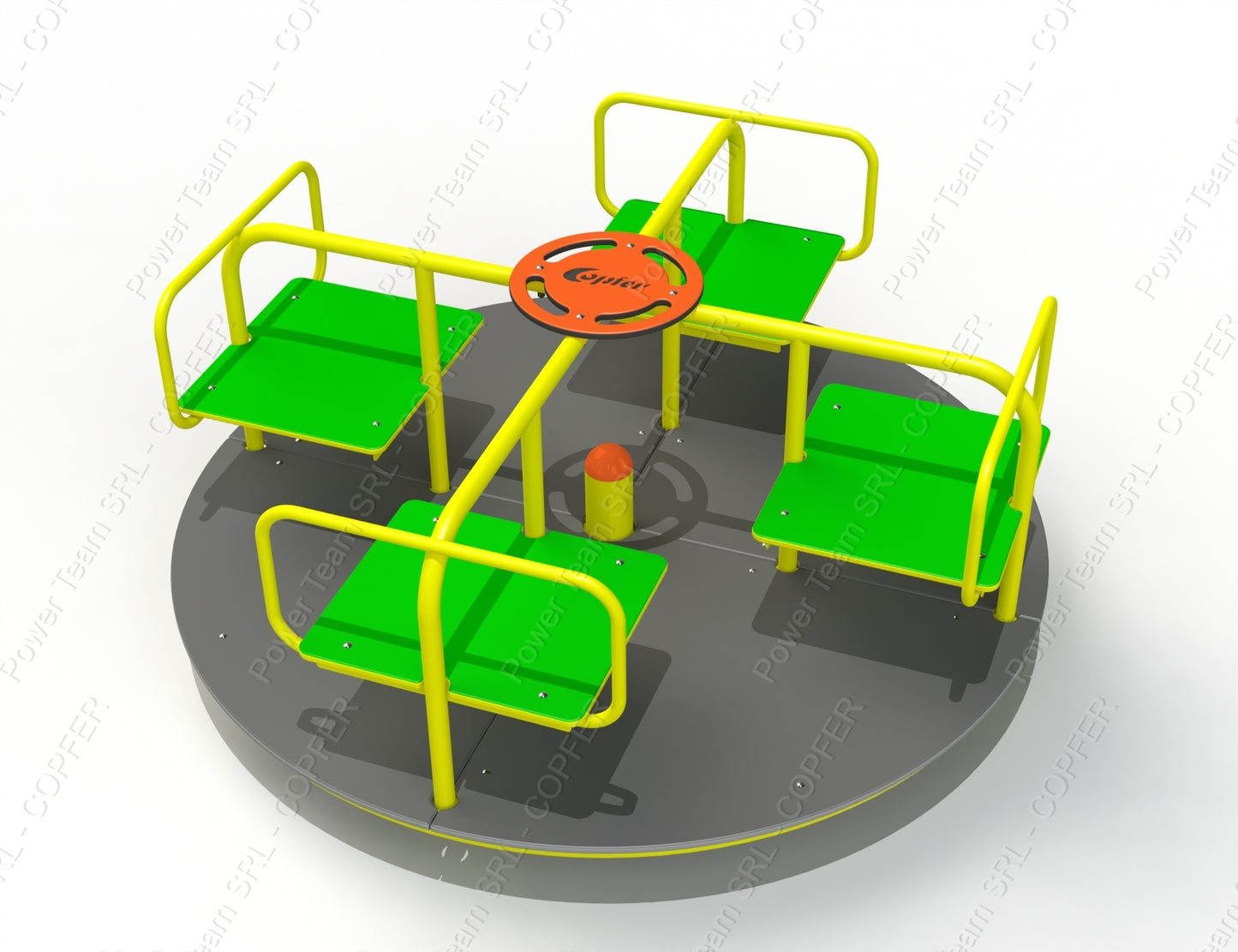

Carousel with 8 seats PTP 027

The carousel is intended for children aged 3 to 6 years. The construction needs to be made of a load-bearing pipe with a minimum section of 89 mm, a metal thickness of at least 9 mm and a rotating casing on an axis on radial conical bearings. The casing is made of a pipe with a minimum diameter of 33 mm and a square pipe with a minimum section of 35mmx35mm, covered with powder paint in factory conditions, on which will be placed 4 double chairs made of HDPE - high-density polyethylene without toxic components with a structure multi-layer of various colors, with a thickness of not less than 15mm, square shape, with metal fasteners, minimum section of 21mm. The floor needs to be made of moisture-resistant plywood, with a thickness of at least 15 mm, with notches (in the form of a net) that do not allow slipping.

The metal elements need to be sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

Materials from which it needs to be made: plywood, steel, HDPE.

The foundation of the construction will have minimum dimensions of LxWxH=400x400x700 mm.

Requirements for installation: To ensure safe and reliable operation, all supporting elements are to be deepened into the soil (earth) not less than 0.70m to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.

Technical characteristics. General dimensions of the construction, not less than: diameter – 1630 mm, height – 690 mm. The height of the base of the platform from the ground (ground) – from 60mm to 110mm.
