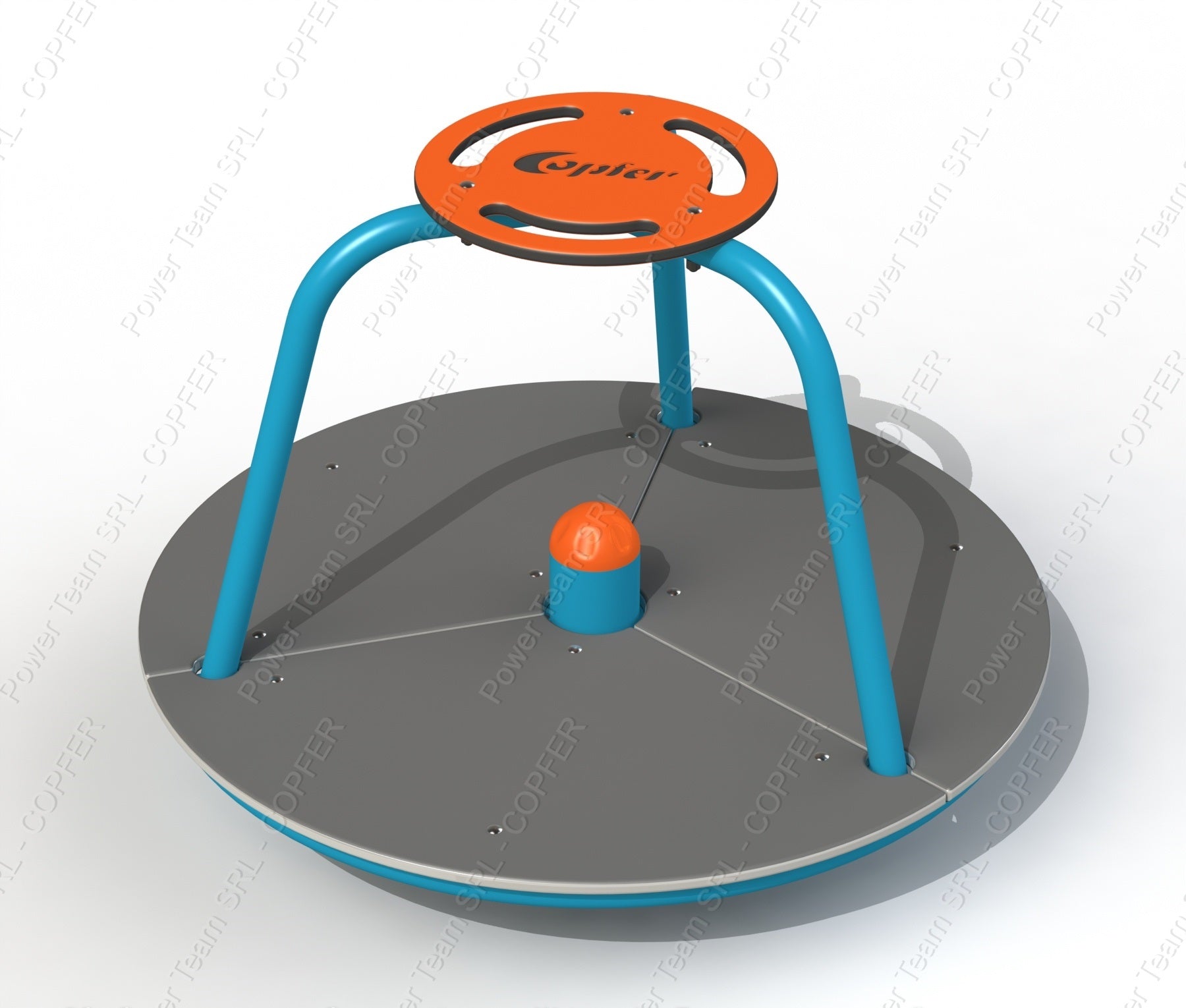

Carousel with 3 seats PTP 024A

The carousel is intended for children from 3 to 6 years old.

Maximum user weight: 55 kg.

Number of users: 3 people.

The structure must be made of a support pipe with a diameter of at least 89 mm, a metal thickness of at least 9 mm and a body rotating on the axis on radial tapered bearings. The body must be made of a pipe with a diameter of at least 33 mm, a profile pipe of at least 35x35 mm with metal railings of at least D=21 mm. The metal railings must have HDPE handles with a thickness of at least 10 mm in the form of a circle with slots for gripping. The floor must be made of HDPE with a minimum thickness of 15 mm.

The metal elements are sandblasted and painted in an electrostatic field, in two layers with a minimum thickness of 100 microns to give them resistance to the external environment.

Materials: steel, HDPE, galvanized fasteners, plastic.

The general dimensions of, not less than: L=900mm, H=638mm, platform H=150mm.

The foundation of the construction will have minimum dimensions of LxWxH=400x400x700 mm.

Requirements for installation: To ensure safe and reliable operation, all supporting elements are to be deepened into the soil (earth) not less than 0.70m to increase rigidity, then following the concreting process (concrete BC 300). The assembly of the elements must exclude the possibility of their disassembly, without the use of special purpose tools.

Download DWG drawing
